[10208] Diaphragm Valve_LOK_B





Size(2EA)

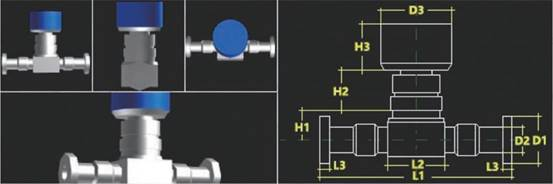

Dimensions
D1
D2
D3
L1
L2
L3
H1
H2
H3
3/4”(19mm)
22
13.1
45
120.7
35.9
5.9
18.65
25.3
28.9
1”(25mm)
30
16
45
120.7
35.9
5.9
18.65
25.3
28.9
/
/
/
/
/
/
/
/
/
/
