[10207] Diaphragm Valve_LOK_A





Size(3EA)

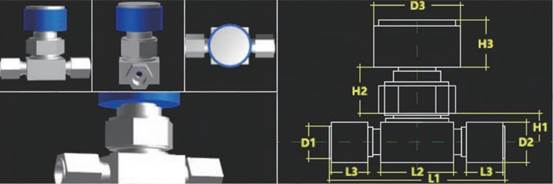

Dimensions
D1
D2
D3
L1
L2
L3
H1
H2
H3
1/4”(6mm)
15
17
47
84
40
15
14.35
17
23.3
3/8”(10mm)
17.4
21
47
99
45
18
15.85
25
25
1/2”(13mm)
17.4
22
47
96
40
20
15.85
25
26
/
/
/
/
/
/
/
/
/
/
