[10247] Damper_PVCVG2_Nozzle
|
|
|
Size(6EA)
|

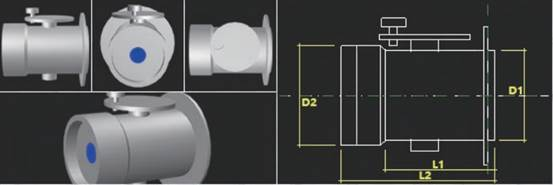

Dimensions
|
|
D1
|
D2
|
L1
|
L2
|
/
|
/
|
/
|
/
|
/
|
|
100A(100mm)
|
114.3
|
126
|
128
|
188
|
/
|
/
|
/
|
/
|
/
|
|
125A(125mm)
|
139.8
|
151.5
|
128
|
198
|
/
|
/
|
/
|
/
|
/
|
|
150A(150mm)
|
165.2
|
176
|
158
|
219
|
/
|
/
|
/
|
/
|
/
|
|
200A(200mm)
|
216.3
|
229
|
208
|
268
|
/
|
/
|
/
|
/
|
/
|
|
250A(250mm)
|
267.4
|
280
|
316
|
426
|
/
|
/
|
/
|
/
|
/
|
|
300A(300mm)
|
342.9
|
378
|
414
|
584
|
/
|
/
|
/
|
/
|
/
|
|
/
|
/
|
/
|
/
|
/
|
/
|
/
|
/
|
/
|
/
|
