[10210] Diaphragm Valve_PVDF_Union Butt
|
|
|
Size(6EA)
|

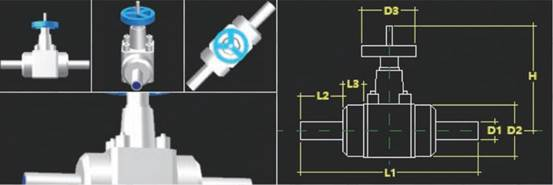

Dimensions
|
|
D1
|
D2
|
D3
|
L1
|
L2
|
L3
|
H
|
/
|
/
|
|
20A(16mm)
|
20
|
57
|
60.8
|
200
|
48
|
23
|
116.8
|
/
|
/
|
|
25A(20mm)
|
26
|
54
|
60.8
|
222
|
60.2
|
21.8
|
109.8
|
/
|
/
|
|
32A(25mm)
|
32
|
62
|
63.8
|
236
|
61.2
|
25.8
|
115.8
|
/
|
/
|
|
40A(32mm)
|
40
|
84
|
86
|
260
|
54.2
|
33.8
|
147.5
|
/
|
/
|
|
50A(40mm)
|
50
|
79
|
89.2
|
286
|
65.2
|
34.8
|
153
|
/
|
/
|
|
63A(50mm)
|
64
|
88
|
98.8
|
322
|
81.2
|
36.8
|
198.5
|
/
|
/
|
|
/
|
/
|
/
|
/
|
/
|
/
|
/
|
/
|
/
|
/
|
