[10204] Ball Valve_SUS_LOK(Red)
|
|
|
Size(5EA)
|

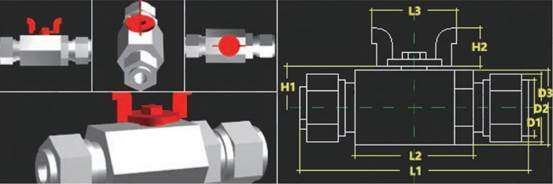

Dimensions
|
|
D1
|
D2
|
D3
|
L1
|
L2
|
L3
|
H1
|
H2
|
/
|
|
1/4”(6mm)
|
8.5
|
10.5
|
13.94
|
78.2
|
40.2
|
32
|
9
|
14
|
/
|
|
3/8”(10mm)
|
12
|
15.1
|
18.01
|
92
|
53
|
38
|
11.1
|
16.9
|
/
|
|
1/2”(13mm)
|
17
|
21
|
25.03
|
97.8
|
50
|
42
|
15.1
|
18.9
|
/
|
|
3/4”(19mm)
|
26
|
32.1
|
35.07
|
107.1
|
57.7
|
50
|
20.1
|
22.9
|
/
|
|
1”(25mm)
|
33
|
40
|
44.34
|
135.2
|
69.8
|
50
|
24.8
|
22.2
|
/
|
|
/
|
/
|
/
|
/
|
/
|
/
|
/
|
/
|
/
|
/
|
