[10184] Reducing Tee_SUS 316_Single&Double
|
|
|
Size(10EA)
|

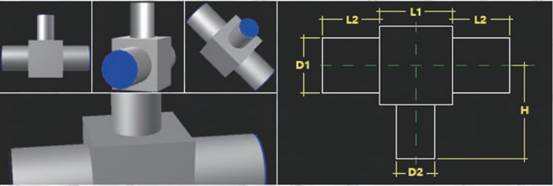

Dimensions
|
|
D1
|
D2
|
L1
|
L2
|
H
|
/
|
/
|
/
|
/
|
|
1/4”(6mm)
|
7
|
7
|
12
|
19
|
25
|
/
|
/
|
/
|
/
|
|
1/2”(13mm)
|
13
|
13
|
20
|
19
|
29
|
/
|
/
|
/
|
/
|
|
3/4”(19mm)
|
19
|
19
|
24
|
19.5
|
31.5
|
/
|
/
|
/
|
/
|
|
1/4”x 1/4”
|
6.4
|
6.4
|
12
|
19
|
25
|
/
|
/
|
/
|
/
|
|
1/2”x 1/4”
|
13
|
6
|
18
|
20
|
29
|
/
|
/
|
/
|
/
|
|
1/2”x 1/2”
|
13
|
13
|
18
|
20
|
29
|
/
|
/
|
/
|
/
|
|
3/4”x 1/4”
|
19
|
6
|
25
|
19.5
|
26.8
|
/
|
/
|
/
|
/
|
|
3/4”x 3/8”
|
19
|
10
|
24
|
20
|
32
|
/
|
/
|
/
|
/
|
|
3/4”x 1/2”
|
19
|
13
|
27
|
15
|
28.5
|
/
|
/
|
/
|
/
|
|
1”x 3/4”
|
25
|
19
|
27
|
15
|
27
|
/
|
/
|
/
|
/
|
|
/
|
/
|
/
|
/
|
/
|
/
|
/
|
/
|
/
|
/
|
|
/
|
/
|
/
|
/
|
/
|
/
|
/
|
/
|
/
|
/
|
