[10168] VALVESOCKET_HT_16A-50A
|
|
|
Size(6EA)
|

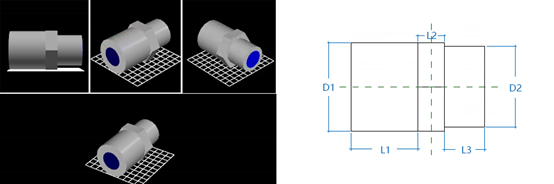

Dimensions
|
|
D1
|
D2
|
L1
|
L2
|
L3
|
/
|
/
|
/
|
/
|
|
16A(16mm)
|
29
|
23
|
27
|
8.7
|
18.4
|
/
|
/
|
/
|
/
|
|
20A(20mm)
|
33
|
27
|
32
|
9.9
|
22.2
|
/
|
/
|
/
|
/
|
|
25A(25mm)
|
40
|
34
|
29.4
|
12
|
29.6
|
/
|
/
|
/
|
/
|
|
30A(30mm)
|
46
|
40
|
33
|
13.8
|
33
|
/
|
/
|
/
|
/
|
|
40A(40mm)
|
57
|
51
|
37.4
|
17
|
37.4
|
/
|
/
|
/
|
/
|
|
50A(50mm)
|
70
|
64
|
53
|
21
|
32
|
/
|
/
|
/
|
/
|
|
/
|
/
|
/
|
/
|
/
|
/
|
/
|
/
|
/
|
/
|
