[10052] 90'_Elbow_Coating
Size(4EA)

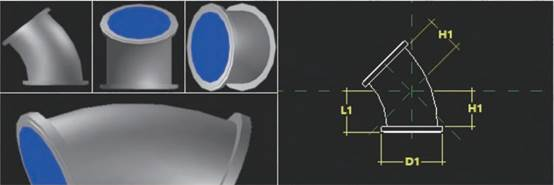

Dimensions
D1
L1
H1
/
/
/
/
/
/
100A(100mm)
128
74
60
/
/
/
/
/
/
125A(125mm)
155
105
91
/
/
/
/
/
/
200A(200mm)
244.3
139
125
/
/
/
/
/
/
250A(250mm)
280
126.2
113
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
